Well it just shows to go ya - you never know what your next mistake will be and what it'll take to correct it. I was cutting the binding channel and made 4 practice cuts in scrap to be sure I had the measurements I needed. Yeah, good to go - NOT. Somehow I dialed the depth up wrong and was at .270 instead of .250. Oh well, this git box is getting EIR bindings now instead of the dark brown tortoise I intended:)
EDIT: I did go back and check my practice cuts to se if I missed something and they were good. Go figure.
A 000-18V style
-
Tim Benware
- Posts: 1489
- Joined: Thu Dec 22, 2011 1:22 pm
- Location: Asheboro, NC
Re: A 000-18V style
I've "Ben-Had" again!
Tim Benware
Creedmoor, NC
Tim Benware
Creedmoor, NC
-
Kevin in California
- Posts: 2795
- Joined: Mon Dec 19, 2011 4:19 pm
Re: A 000-18V style
A bummer Tim but one that is easily recovered, right.
I have that fear of my cuts not being what they were on the test board, so I do about 1/2" off the neck mortise and stop to check my cut with a piece of my binding scheme. If it looks okay I go ahead. If I'm off this area gets covered with the neck cheeks and I can make an adjustment and try it on the other side.
Kevin
I have that fear of my cuts not being what they were on the test board, so I do about 1/2" off the neck mortise and stop to check my cut with a piece of my binding scheme. If it looks okay I go ahead. If I'm off this area gets covered with the neck cheeks and I can make an adjustment and try it on the other side.
Kevin
-
Tim Benware
- Posts: 1489
- Joined: Thu Dec 22, 2011 1:22 pm
- Location: Asheboro, NC
Re: A 000-18V style
I did that only this time I came out just past that point (another stinkin' mistake, thanks for reminding me Kevin:))Kevin in California wrote:A bummer Tim but one that is easily recovered, right.
I have that fear of my cuts not being what they were on the test board, so I do about 1/2" off the neck mortise and stop to check my cut with a piece of my binding scheme. If it looks okay I go ahead. If I'm off this area gets covered with the neck cheeks and I can make an adjustment and try it on the other side.
Kevin

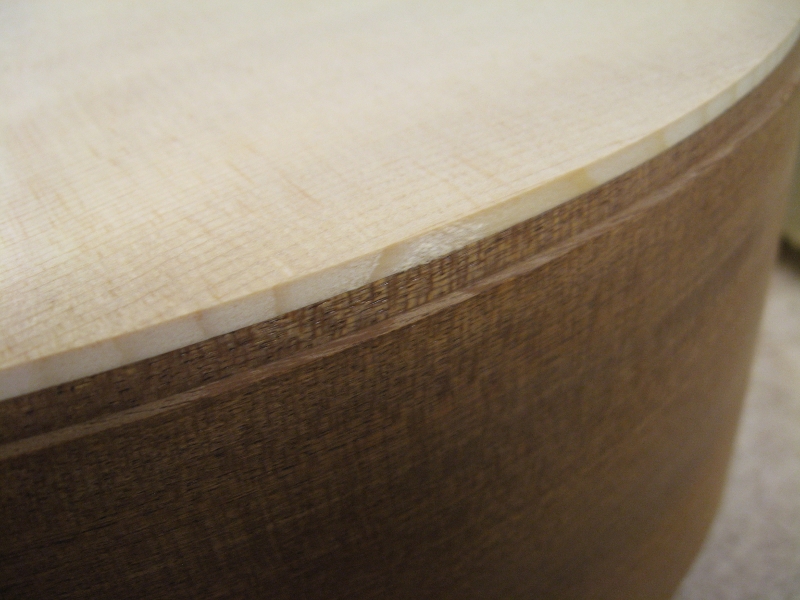

EDIT: The good news is the channels came out nice and clean.
- Attachments
-
- 7 Binding Channel.jpg (334.58 KiB) Viewed 1080 times
I've "Ben-Had" again!
Tim Benware
Creedmoor, NC
Tim Benware
Creedmoor, NC
-
Kevin in California
- Posts: 2795
- Joined: Mon Dec 19, 2011 4:19 pm
Re: A 000-18V style
Wow that is clean. Looks like no touch up necessary there Tim.
Kevin
Kevin
Re: A 000-18V style
The rosewood binding will look good on there.
Too bad you can't go with the dark brown tortoise though.
Your guitar is a beauty. Your work is excellent.
George
Too bad you can't go with the dark brown tortoise though.
Your guitar is a beauty. Your work is excellent.
George
-
Tim Benware
- Posts: 1489
- Joined: Thu Dec 22, 2011 1:22 pm
- Location: Asheboro, NC
Re: A 000-18V style
Thanks George.
Yeah Kevin, zero touch up on this one. This is only the second guitar I've done with this bit so it's still very sharp. Whiteside 1/8" down cut spiral (RD1600).
EDIT: FYI, it is actually a 1/4" down cut spiral RD2100, the other I got for template routing.
Yeah Kevin, zero touch up on this one. This is only the second guitar I've done with this bit so it's still very sharp. Whiteside 1/8" down cut spiral (RD1600).
EDIT: FYI, it is actually a 1/4" down cut spiral RD2100, the other I got for template routing.
I've "Ben-Had" again!
Tim Benware
Creedmoor, NC
Tim Benware
Creedmoor, NC
Re: A 000-18V style
Nice looking channels fo sho. Makes me want to try a down cut bit.
Excellent work as always Tim. I need to buy one of those benches that you turned into a troji. I know it will make some tasks much, much easier than using my one-of-a-kind knee clamp with a towel on the floor to prevent scratches!
Excellent work as always Tim. I need to buy one of those benches that you turned into a troji. I know it will make some tasks much, much easier than using my one-of-a-kind knee clamp with a towel on the floor to prevent scratches!
