Calling this one done!

Post by Kevin in California » Tue Apr 14, 2015 11:15 am

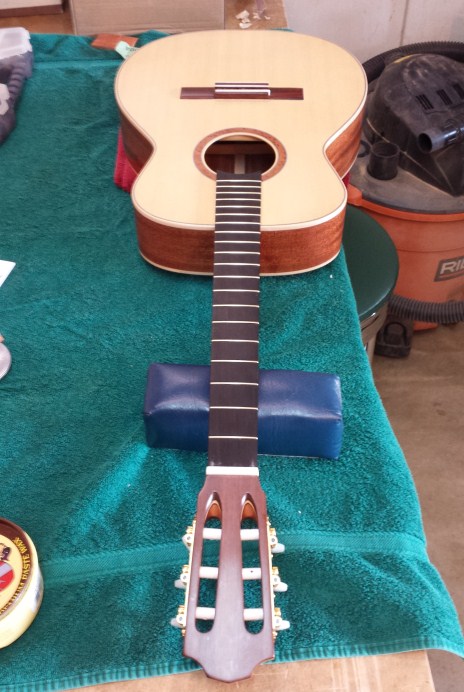

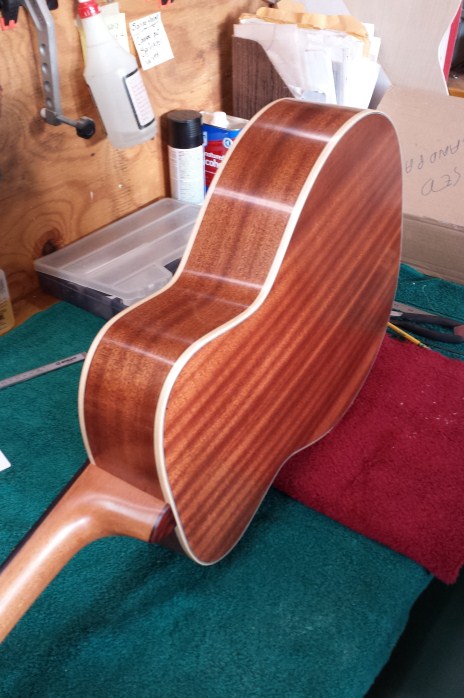

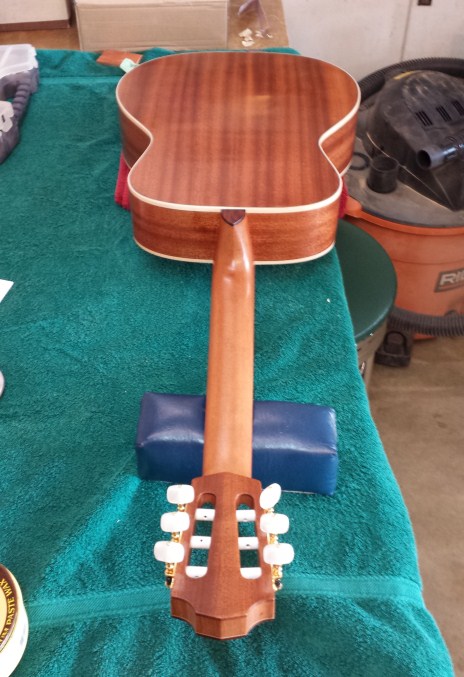

I've shown some pictures of this one along the way but I am declaring it now done!
It is a crossover. OM body, 20' radiused fretboard, 14 frets at the body.

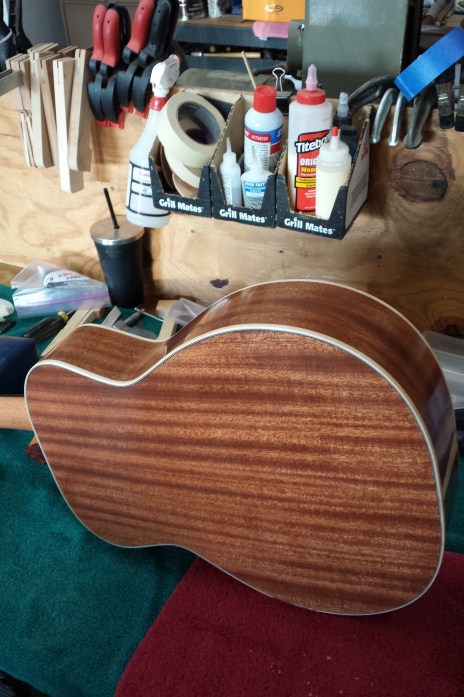

Sapele B & S with maple bindings.
Sitka spruce top with 9 fan bracing.
Spanish cedar neck.
Ebony fretboard, cocobolo bridge

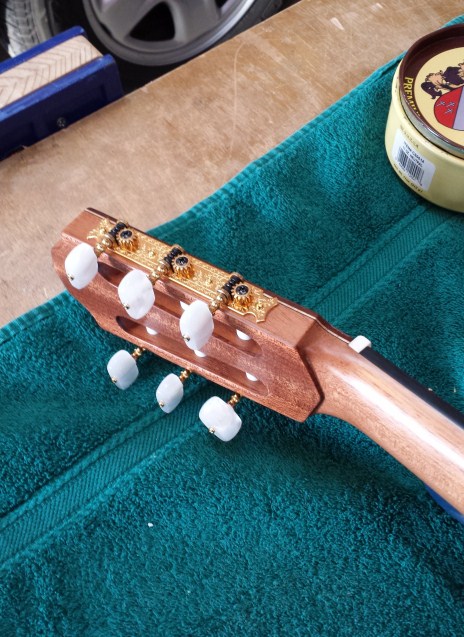

Madagascar rosewood headstock overlay front, sapele on the back.

I did some porefilling with shellac and sawdust, and some with rosewood colored Timbermate. I guess I like the Timbermate better.
The finish is french polished shellac. I used Zinners Sealcoat cut to a 1lb cut and padded it on ala Robbie's O'Briens finishing video. I tried to follow it best I could.
I did finish with the bridge on.....never again. I had a good reason for gluing the bridge on first but I will avoid that again at all costs.

I let the finish sit for 3 weeks then I rubbed it out with 0000 steel wool and finishing wax. I really like how it feels, came out somewhere between satin and semi-gloss.
I don't care for the fine scratches the steel wool leaves behind, but I will get use to it. Robbie is right, the finish is silky smooth and really is nice in the hands.
My wife says that is how she wants her guitar finished.

I have had strings on this guitar in the white, and tried to reuse those strings, which didn't work out- too short.
In the process of putting them on I realized i forgot to protect the top right behind the bridge, and I do now have a couple little dents there. Oh well the first
of many I'm sure. This guitar was an experiment and overall I'm pleased with how it has turned out. It sounded pretty good in the white, hoping
it will sound better now that it is finished. I'll get new strings on it tonight. My playing is modest but I'll put up a sound bite of how it sounds.

Kevin
Attachments

John Parchem
Posts: 2749
Joined: Fri Dec 23, 2011 8:33 pm
Location: Seattle
Contact:

Re: Calling this one done!

Post by John Parchem » Tue Apr 14, 2015 11:42 am

Looks really good. I like your head stock design and how you treated the back strap veneer on the head stock. I am looking forward to hearing it.

dave d
Posts: 451
Joined: Sun Jan 01, 2012 11:05 pm
Location: Toronto-ish

Re: Calling this one done!

Post by dave d » Tue Apr 14, 2015 12:16 pm

Beautiful work Kevin. Really like how the sapele looks. Well done on everything.

John Link
Posts: 800
Joined: Tue Nov 27, 2012 8:01 pm
Location: Kalamazoo, MI

Re: Calling this one done!

Post by John Link » Tue Apr 14, 2015 12:17 pm

I'll second that, John. The finish is cleanly transparent - that hog shows off its nature in full glory.
John

Tim Benware
Posts: 1489
Joined: Thu Dec 22, 2011 1:22 pm
Location: Asheboro, NC

Re: Calling this one done!

Post by Tim Benware » Tue Apr 14, 2015 12:40 pm

Is it a hybrid? Came out really nice, I prefer the satin look but most I build for want high gloss.
I've "Ben-Had" again!
Tim Benware
Creedmoor, NC

Dave Bagwill
Posts: 5951
Joined: Tue Dec 13, 2011 7:44 pm

Re: Calling this one done!

Post by Dave Bagwill » Tue Apr 14, 2015 1:27 pm

I really like that look, and the entire aesthetic as well.
-Under permanent construction

Herman
Posts: 1685
Joined: Sun Dec 30, 2012 1:20 pm
Location: Arnhem area, the Netherlands
Contact:

Re: Calling this one done!

Post by Herman » Tue Apr 14, 2015 2:25 pm

Wonderful my big boy! Hard to give comment about this one, all looks great. Where are the flaws? Cannot see any dents. Your great skills show. Keep 'm going. Yeah, show a few chords.

Herman
